Through innovative design and a flexible manufacturing processes, the highly skilled team can modify or custom build marine trailers to virtually any requirement or budget. Established over 38 years ago, Mackay Multi-Link is proudly Australian owned and operated. Our custom trailers are built to perform in Australia’s rugged conditions.
Mini-Link | Multi-Link | MLJ | KR | Aluminium | Water Vehicle | Off Road | SK | Pontoon
MULTI-LINK SERIES
MLKR Single Axle Trailers
| TRAILER SPECIFICATIONS | |
| Tare: | 220kg |
| GVM: | 500kg |
| Brakes: | No |
| Wheels: | 13″ |
| Boat (up to): |
4.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 235kg |
| GVM: | 749kg |
| Brakes: | No |
| Wheels: | 13″ |
| Boat (up to): |
4.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 265kg |
| GVM: | 1100kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
4.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 305kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.2m |
| TRAILER SPECIFICATIONS | |
| Tare: | 325kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.2m |
| TRAILER SPECIFICATIONS | |
| Tare: | 355kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 375kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 390kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 410kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.8m |
Best value keel support trailer for boats up to 7.5m
STANDARD INCLUSIONS
- New first quality rated tyres with manufacturers warranty
- Bearing buddies with covers
- White plastic mudguards
- Galvanised springs, axle, hubs, U-bolts and nuts
- Galvanised steel wheels
- Marine grease seals – prevents water entering the bearings
- Webb winch with manufacturers warranty
- Swing jockey wheel
- Side ‘adjustable’ wobble support rollers, ladders or carpeted skids
- LED lights.
- Two year structural warranty on frame
| OPTIONAL EXTRAS | |
| Spare Wheel and Carrier | |
| Mesh A-Frame & Walkway | |
| Swing Drawbar | |
| White Alloy Wheels | |
MLKR Tandem & TriAxle Trailers
- MLKR50T-13-M
- MLKR55T-13-M
- MLKR57T-13-HB
- MLKR57T-14-HB
- MLKR57T-14-M
- MLKR60T-13-HB
- MLKR60T-13-M
- MLKR60T-14-HB
- MLKR60T-14-M
- MLKR60T-14HD-HB
| TRAILER SPECIFICATIONS | |
| Tare: | 440kg |
| GVM: | 1850kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 495kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 600kg |
| GVM: | 2600kg |
| Brakes: | Hydraulic |
| Wheels: | 13″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 640kg |
| GVM: | 3000kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 580kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 650kg |
| GVM: | 2600kg |
| Brakes: | Hydraulic |
| Wheels: | 13″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 590kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 680kg |
| GVM: | 3000kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 630kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 700kg |
| GVM: | 3500kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
6.5m |
STANDARD INCLUSIONS
- Galvanised springs, axle, hubs, U-bolts and nuts
- New first quality light truck tyres with manufacturers warranty
- Two year structural warranty on frame
- Bearing buddies with covers
- Skid (SK) and roller side support options. Skids are either comprised of steel with Teflon / plastic covering (for Aluminium boats), or of timber with carpet (for fibreglass boats)
- Marine grease seals – prevents water entering the bearings
- Galvanised steel wheels
- Galvanised steel mudguards with steps and tie downs
- Webb winch (manufacturers warranty)
- Swing Jockey wheel
- Full bed of keel rollers for maximum support or rocka roller double sets
- Fully adjustable side wobble rollers / or skids – both vertically and horizontally
- LED lights
- Transom tie-down points
- Integral retrieval system
| OPTIONAL EXTRAS | |
| Integrated non slip mesh walkway | |
| 13” spare wheel and carrier | |
| Hella LED Lights, 3 year warranty | |
| White alloy wheels (in lieu of steel) | |
| Swing away drawbar | |
| Hand brake on hydraulically braked (HB) trailers | |
| 14”, 15” & 16” wheel upgrade – includes heavier axle, heavier springs and upgraded bearings | |
MLJ SERIES
MLJ (Open Channel) Single Axle Trailers
| TRAILER SPECIFICATIONS | |
| Tare: | 265kg |
| GVM: | 1100kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
4.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 305kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.2m |
| TRAILER SPECIFICATIONS | |
| Tare: | 325kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.2m |
| TRAILER SPECIFICATIONS | |
| Tare: | 355kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 375kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.5m |
Rust is enemy no. 1, and any closed RHS steel tube at some point in time will be subjected to corrosion from the inside. (unless the trailer owner is absolutely anal about maintenance). Most people are time poor, and proper maintenance is often neglected. Mackay produce an open tube trailer utilizing “C” Channel on its main chassis rails. The “C” Channel is open, thus no water can accumulate. The chassis beam are easily maintained and are quick to dry. If problems do arise, then these are clearly visible.
Open “C” Channel trailer construction
STANDARD INCLUSIONS
- Open Channel Rolled Chassis railsy
- New first quality rated tyres with manufacturers warranty
- Bearing buddies with covers
- White plastic mudguards
- Galvanised springs, axle, hubs, U-bolts and nuts
- Galvanised steel wheels
- Marine grease seals – prevents water entering the bearings
- Webb winch with manufacturers warranty
- Swing jockey wheel
- Ladder keel roller system
- Rear and central guide on system
- Side ‘adjustable’ wobble support rollers or carpeted skids
- Fully protected LED lights.
- Two year structural warranty on frame
| OPTIONAL EXTRAS | |
| Spare Wheel and Carrier | |
| Mesh A-Frame & Walkway | |
| Swing Drawbar | |
| White Alloy Wheels | |
| Steel Mudguard w/ Steps | |
MLJ (Open Channel) Tandem Axle Trailers
| TRAILER SPECIFICATIONS | |
| Tare: | 440kg |
| GVM: | 1850kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 495kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 600kg |
| GVM: | 2600kg |
| Brakes: | Hydraulic |
| Wheels: | 13″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 540kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 640kg |
| GVM: | 3000kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 580kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
6.1m |
STANDARD INCLUSIONS
- Open Channel Rolled Chassis rails
- New first quality rated tyres with manufacturers warranty
- Bearing buddies with covers
- White plastic mudguards
- Galvanised springs, axle, hubs, U-bolts and nuts
- Galvanised steel 13” wheels
- Marine grease seals – prevents water entering the bearings
- Jarrett Webb winch with manufacturers warranty
- Swing jockey wheel
- Ladder keel roller system
- Rear and central guide on system
- Side ‘adjustable’ wobble support rollers or carpeted skids
- Fully protected LED lights.
- Number plate holder (pre-drilled)
- Two year structural warranty on frame
| OPTIONAL EXTRAS | |
| Spare Wheel and Carrier | |
| Mesh A-Frame & Walkway | |
| Swing Drawbar | |
| Alloy Wheels | |
| Steel Mudguard w/ Steps | |
KR SERIES
KR (Keel-Roller) Single Axle Trailers
| TRAILER SPECIFICATIONS | |
| Tare: | 230kg |
| GVM: | 650kg |
| Brakes: | None |
| Wheels: | 13″ |
| Boat (up to): |
4.0m |
| TRAILER SPECIFICATIONS | |
| Tare: | 250kg |
| GVM: | 700kg |
| Brakes: | None |
| Wheels: | 13″ |
| Boat (up to): |
5.2m |
| TRAILER SPECIFICATIONS | |
| Tare: | 280kg |
| GVM: | 749kg |
| Brakes: | None |
| Wheels: | 13″ |
| Boat (up to): |
4.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 320kg |
| GVM: | 1100kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
4.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 340kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.2m |
| TRAILER SPECIFICATIONS | |
| Tare: | 355kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.2m |
| TRAILER SPECIFICATIONS | |
| Tare: | 370kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 385kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 430kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 445kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 470kg |
| GVM: | 1850kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.8m |
Mackay’s classic Keel Roller
STANDARD INCLUSIONS
- Choice of galvanised mesh (integral) or non-mesh frame (mesh is an optional extra)
- Galvanised springs, axle, hubs, U-bolts and nuts
- New first quality light truck tyres with manufacturers warranty
- Marine grease seals – prevents water entering the bearings
- Bearing buddies with covers
- Galvanised steel wheels
- White plastic mudguards with front and rear steps
- Webb winch (manufacturers warranty)
- Full bed of keel rollers for maximum support
- Adjustable integral sub-frame for strength and stability
- Automatic tilting Rear Rocka for easy launch and retrieval
- 14” wheel upgrade – includes upgraded bearings
- Heavy Duty single axle option to increase GVM to 1750kg
- LED lights
- Continuous contact wobble rollers, grey
- Transom tie-down points
- Two year structural warranty on frame
- Swing Jockey wheel
| OPTIONAL EXTRAS | |
| Integrated non slip A Frame and walkway | |
| Teflon wrap around protection on all roller brackets | |
| Spare wheel and carrier | |
| Hella LED Lights, 3 year warranty | |
| White alloy wheels | |
| Swing away drawbar | |
| Mackay Mudflaps | |
KR (Keel-Roller) Tandem Axle Trailers
- KR50T-13-M
- KR55T-13-M
- KR55T-14-M
- KR57T-13-HB
- KR57T-13-M
- KR57T-14-HB
- KR57T-14-M
- KR60T-13-HB
- KR60T-13-M
- KR60T-14-HB
- KR60T-14-M
| TRAILER SPECIFICATIONS | |
| Tare: | 425kg |
| GVM: | 1850kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 495kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 505kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 555kg |
| GVM: | 2600kg |
| Brakes: | Hydraulic |
| Wheels: | 13″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 530kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 565kg |
| GVM: | 3000kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 540kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 620kg |
| GVM: | 2600kg |
| Brakes: | Hydraulic |
| Wheels: | 13″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 560kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 635kg |
| GVM: | 3000kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 575kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
6.5m |
KR (Keel-Roller) Tandem King Trailers
- KR60T-14HD-HB
- KR65T-14-HB
- KR65T-15HD-HB
- KR70T-14-HB
- KR70T-14HD-HB
- KR70T-15HD-HB
- KR75T-14-HB
- KR75T-14HD-HB
- KR75T-15HD-HB
- KR75T-16HD-HB
| TRAILER SPECIFICATIONS | |
| Tare: | 700kg |
| GVM: | 3500kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 720kg |
| GVM: | 3000kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.0m |
| TRAILER SPECIFICATIONS | |
| Tare: | 810kg |
| GVM: | 4000kg |
| Brakes: | Hydraulic |
| Wheels: | 15″ |
| Boat (up to): |
7.0m |
| TRAILER SPECIFICATIONS | |
| Tare: | 760kg |
| GVM: | 3000kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.4m |
| TRAILER SPECIFICATIONS | |
| Tare: | 825kg |
| GVM: | 3500kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.4m |
| TRAILER SPECIFICATIONS | |
| Tare: | 850kg |
| GVM: | 4000kg |
| Brakes: | Hydraulic |
| Wheels: | 15″ |
| Boat (up to): |
7.4m |
| TRAILER SPECIFICATIONS | |
| Tare: | 915kg |
| GVM: | 3000kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 995kg |
| GVM: | 3500kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 1020kg |
| GVM: | 4000kg |
| Brakes: | Hydraulic |
| Wheels: | 15″ |
| Boat (up to): |
7.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 1115kg |
| GVM: | 4499kg |
| Brakes: | Hydraulic |
| Wheels: | 16″ |
| Boat (up to): |
7.8m |
KR (Keel-Roller) Tri-Axle Trailers
| TRAILER SPECIFICATIONS | |
| Tare: | 1140kg |
| GVM: | 4499kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 1205kg |
| GVM: | 4499kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 1270kg |
| GVM: | 4499kg |
| Brakes: | Hydraulic |
| Wheels: | 15″ |
| Boat (up to): |
7.8m |
Additional standard features on Heavy Duty (HD) Trailers
- Heavy Duty (HD) loadshare springs
- Landcruiser hubs
- Low ride (overlay) 50mm axles – reduces trailer height by 50mm
- Jockey wheel. Heavy duty retractable type or 10” Swing up style
- Premium series decal
STANDARD INCLUSIONS
- Choice of galvanised mesh (integral) or non-mesh frame (mesh is an optional extra)
- Galvanised springs, axle, hubs, U-bolts and nuts
- New first quality light truck tyres with manufacturers warranty
- Marine grease seals – prevents water entering the bearings
- Bearing buddies with covers
- Galvanised steel wheels
- Mackay mudflaps
- White plastic mudguards with front and rear steps
- Webb winch (manufacturers warranty)
- Swing Jockey wheel
- LED lights and LED clearance lights
- Full bed of keel rollers for maximum support
- Side wobble rollers or skids
- Bumper strip covering Rear Rocka roller brackets
- Transom tie down points
- Adjustable integral sub-frame for strength and stability
- Automatic tilting Rear Rocka for easy launch and retrieval
- 14” wheel upgrade – includes heavier axle, heavier springs and upgraded bearings
- Loads sharing springs on 14”, 15” & 16” heavy duty (HD) trailers
- Two year structural warranty on frame
| OPTIONAL EXTRAS | |
| Integrated non slip A Frame and walkway | |
| Spare wheel and carrier | |
| Polished alloy wheels (in lieu of steel) | |
| Galvanised Steel Guards with steps in lieu of Plastic | |
| Swing away drawbar | |
| Mechanical handbrake on HB model trailers | |
| Teflon wrap around protection on all Roller brackets | |
| Powdercoat over galvanising | |
ALUMINIUM SERIES
Aluminium Single Axle Trailers
| TRAILER SPECIFICATIONS | |
| Tare: | 210kg |
| GVM: | 749kg |
| Brakes: | None |
| Wheels: | 13″ |
| Boat (up to): |
5.2m |
| TRAILER SPECIFICATIONS | |
| Tare: | 245kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.2m |
| TRAILER SPECIFICATIONS | |
| Tare: | 260kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.2m |
| TRAILER SPECIFICATIONS | |
| Tare: | 265kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 280kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 275kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 290kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.8m |
Aluminum Tandem Axle Trailers
- AL55T-13-M
- AL57T-13-HB
- AL57T-13-M
- AL60T-13-HB
- AL60T-13-M
- AL65T-14HD-HB
- AL70T-14HD-HB
- AL70T-15HD-HB
- AL70T-16HD-HB
- AL75T-14HD-HB
- AL75T-15HD-HB
- AL75T-16HD-HB
| TRAILER SPECIFICATIONS | |
| Tare: | 410kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 450kg |
| GVM: | 2600kg |
| Brakes: | Hydraulic |
| Wheels: | 13″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 425kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 445kg |
| GVM: | 2600kg |
| Brakes: | Hydraulic |
| Wheels: | 13″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 445kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 660kg |
| GVM: | 3500kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.0m |
| TRAILER SPECIFICATIONS | |
| Tare: | 710kg |
| GVM: | 3500kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.4m |
| TRAILER SPECIFICATIONS | |
| Tare: | 730kg |
| GVM: | 4000kg |
| Brakes: | Hydraulic |
| Wheels: | 15″ |
| Boat (up to): |
7.4m |
| TRAILER SPECIFICATIONS | |
| Tare: | 760kg |
| GVM: | 4499kg |
| Brakes: | Hydraulic |
| Wheels: | 16″ |
| Boat (up to): |
7.4m |
| TRAILER SPECIFICATIONS | |
| Tare: | 720kg |
| GVM: | 3500kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 735kg |
| GVM: | 4000kg |
| Brakes: | Hydraulic |
| Wheels: | 15″ |
| Boat (up to): |
7.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 820kg |
| GVM: | 4499kg |
| Brakes: | Hydraulic |
| Wheels: | 16″ |
| Boat (up to): |
7.8m |
Aluminum Tri-Axle Trailers
| TRAILER SPECIFICATIONS | |
| Tare: | 795kg |
| GVM: | 4499kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
7.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 850kg |
| GVM: | 4499kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 890kg |
| GVM: | 4499kg |
| Brakes: | Hydraulic |
| Wheels: | 15″ |
| Boat (up to): |
7.8m |
Mackay manufactures custom aluminium trailers and provides a fabrication service. Mackay’s custom aluminium trailers are lightweight, strong, and easy to maintain. Designed from the ground up, Mackay’s aluminium boat trailers comprise rigid welded Aluminium frames with low ride axles on all models. Heavy Duty models are also fitted with loadshare suspension coupled with landcruiser hubs and NSK bearings show quality all the way through. Mackay also manufactures a range of custom aluminium trailers for rowing shells, plant and machinery, and other specialised applications. Mackay also provides a specialised aluminium fabrication service.
Lightweight aluminium keel roller boat trailers for boats up to 7.8m
STANDARD INCLUSIONS
- High grade 6082 Australian Aluminium frame with two year (2 year) structural warranty
- Aluminium drawbar, cross-members
- Galvanised steel wheels with new first quality light truck tyres with manufacturers warranty
- White plastic guards on 13” & 14” wheels. Aluminium Guards on 15” tandem & triaxle wheels
- Frame comprises thick square tube construction – providing maximum strength and stiffness
- Galvanised steel springs, axle, hubs, u-bolts, jockey wheel and fasteners
- Seamless construction
- Professionally engineered to meet rugged Australian conditions
- Optimum use of welded and bolted joints to minimise structural stress and fatigue – to ensure reliability
- Keel roller ladder and side carpet skids or optional wobble rollers for maximum support
- Soft durable keel rollers. Soft durable keel rollers with galvanised steel or Aluminium inner sleeves
- Bearing Buddies with covers
- LED lights and LED clearance lights
- Marine grease seals – Prevents water entering the bearings
- Alko or Webb Winch (Manufacturers Warranty)
- Heavy Duty Load Share system (optional torsion axles) ensures load rating complies
- Landcruiser hubs and wheel stud pattern (HD Models)
- Transom Tie Down Points
- Wide capture integral guide-on system
| OPTIONAL EXTRAS | |
| Integrated non slip A Frame and walkway | |
| Aluminium checker plate walkway | |
| Guide Poles | |
| Stainless Steel Braking System | |
| Alloy Wheels | |
| Aluminium Tandem guards (13” & 14” wheels only) | |
WATER VEHICLE SERIES

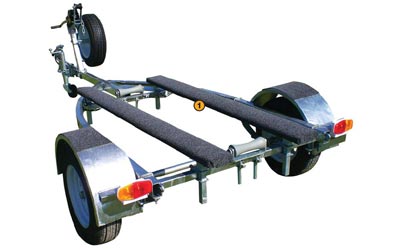

Water Vehicle / Jetski Trailers
Typical differences between the Mackay Jetski Trailer and competitors, include;
- Adjustable roller skids
- Double sets of wobble rollers at rear – better support for retrieving and prevents damage
- 12” wide entry keel roller at rear and additional keel rollers – for better support and protection of the jetski hull –
avoiding damage - Weld-on step-on robust light brackets – with rounded edges – serving to protect the light as well as general user safety
ie. no sharp edges - LED lights
- Fully galvanised components including axles, hubs, springs, U-Bolts and other most fasteners
- Bearing buddies (optional)
- Use of NSK Japanese highest quality bearings and high lithium grease – to prevent bearing failure
- Wider wheels – Mackay uses 13” x 5.5” width. Most competitors use narrower or smaller wheels
- Better quality tyres
- All electrical wiring joins are soldered with heat shrink wrap – for longer life and to prevent electrical faults
- Wire is threaded through PVC tubing to prevent chafing / and electrical shorts
- Finer details such as refl ectors – are riveted firmly onto the frame – thus staying in place (unlike cheaper stick-ons)
- High Grip non-marking continuous contact wobble rollers
Quality jetski trailers with easy launch & retrieve features
STANDARD INCLUSIONS
- New first quality rated tyres with manufacturers warranty
- Bearing buddies with covers
- White plastic mudguards
- Galvanised springs, axle, hubs, U-bolts and nuts
- Galvanised steel 13” wheels
- Marine grease seals – prevents water entering the bearings
- Webb winch with manufacturers warranty
- Swing jockey wheel
- Keel roller support with 12” wide entry keel roller
- Side ‘adjustable’ wobble support rollers, ladders or carpeted skids
- LED lights
- Two year structural warranty on frame
| OPTIONAL EXTRAS | |
| 13” spare wheel and carrier | |
| 14” wheel option on Tandem jetski | |
| Mesh A-Frame – Single Jetski Trailer | |
| Mesh A-Frame & Walkway – Tandem Jetski trailer | |
| Swing Drawbar | |
| White alloy wheels | |
| Advantage steel mudguards with longer rear boarding step | |
| Jerry can holder | |
OFF ROAD SERIES
Off Road Trailers
STANDARD INCLUSIONS
- Mesh A-frame
- Mesh walkway running down both sides
- Large section steel construction with extra gussets
- Approximately 750mm added to the length of the drawbar
- Rear pick-up rollers on the rear rocka and side skids (trailer can be fitted out fully with skids)
- Off-road galvanised springs
Off-road boat trailers built for the rugged outback
Off Road Trailers are only available in the Single Axle KR Models with a choice of 14” or 15” Wheels.
| OPTIONAL EXTRAS | |
| Off Road Coupling, Poly Block | |
| Munroe Heavy Duty Shock Absorbers | |
| Swing Drawbar | |
SK SERIES
SK (Ski Boat) Single Axle Trailer
| TRAILER SPECIFICATIONS | |
| Tare: | 375kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 410kg |
| GVM: | 1480kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.8m |
SK (Ski Boat) Tandem Axle Trailer
| TRAILER SPECIFICATIONS | |
| Tare: | 465kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 495kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
5.8m |
| TRAILER SPECIFICATIONS | |
| Tare: | 640kg |
| GVM: | 3000kg |
| Brakes: | Hydraulic |
| Wheels: | 14″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 580kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
6.1m |
| TRAILER SPECIFICATIONS | |
| Tare: | 680kg |
| GVM: | 3000kg |
| Brakes: | Hydraluic |
| Wheels: | 14″ |
| Boat (up to): |
6.5m |
| TRAILER SPECIFICATIONS | |
| Tare: | 630kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 14″ |
| Boat (up to): |
6.5m |
This new trailer series is designed specifically for the High Performance Water Sports segment of the market. With 30 years of trailer building experience and a reputation second to none, Mackay is well positioned to offer the best combination of quality, design excellence and value.
Quality trailers for high performance ski & wakeboard boats
STANDARD INCLUSIONS
- Pricing includes either painted or galvanised finish (option for paint over galvanised)
- Standard galvanised axles, springs, hubs and U-Bolts etc
- New first quality light truck tyres with manufacturers warranty
- Two year structural warranty on frame
- Extra low trailer rear design and low ride axles to accommodate inboard propeller shafts and tracking fi ns ensure the boat remains as low to the ground as possible, improving both the tow dynamics of the boat and trailer, as well as ensuring ease of launch and retrieval
- Adjustable long skid side supports. Skids are comprised of timber with carpet. The Mackay long skids can be set up to accommodate the shape of the hull, thus maximising the support surface area, and reducing any pressure points.
- Deep, wide mudguard infills – providing a strong aesthetic appearance
- Bearing buddies with covers
- Firm step-up light brackets with rounded edges. Good for protecting the light, and for general user safety.
- Marine grease seals – prevents water entering the bearings
- Galvanised steel 13” turbine wheels with options for Alloy wheels
- Webb winch (manufacturers warranty)
- Swing Jockey wheel
- LED lights, with the light bracket doubling as a rear step
- Transom tie-down points
- 14”, 15” & 16” wheel upgrades
- Choice of alloy wheels. (optional upgrades)
| OPTIONAL EXTRAS | |
| Integrated non slip A Frame and walkway | |
| Spare wheel and carrier | |
| Hella LED Lights, 3 year warranty | |
| Alloy wheels (in lieu of steel) | |
| 15” or 16” steel wheel upgrade | |
| Swing away drawbar | |
| Aluminium checker plate on guards | |
| Guide poles | |
| Chrome plated guards and infill | |
| Mechanical handbrake on hydraulically braked break-away brakes | |
| Aluminium trailer options | |
PONTOON SERIES
Pontoon Single Axle Trailer
| TRAILER SPECIFICATIONS | |
| Tare: | 375kg |
| GVM: | 1350kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
5.5m |
Pontoon Tandem Axle Trailer
| TRAILER SPECIFICATIONS | |
| Tare: | 540kg |
| GVM: | 1999kg |
| Brakes: | Mech |
| Wheels: | 13″ |
| Boat (up to): |
6.5m |
Boat trailers for pontoon boats up to 21 feet
STANDARD INCLUSIONS
- Galvanised Steel Frame with Two Year Structural Warranty
- Galvanised Springs, Axle, Hubs, U-Bolts and Fasteners
- Carpeted V-Skids for secure capture of pontoon hulls
- New First Quality Light Truck Tyres with Manufacturers Warranty
- Bearing Buddies with Covers
- LED Lights
- Marine Grease Seals – Prevents water entering the bearings
- Galvanised Steel Turbine Wheels
- Galvanised Steel Mudguards
- Webb Winch (Manufacturers Warranty)
- Swing Jockey Wheel
- Transom Tie Down Points
- 14” Wheel Upgrade – includes Heavier Axle, Heavier Springs and Upgraded Bearings
| OPTIONAL EXTRAS | |
| 13” Spare Wheel and Carrier | |
| 14” Spare Wheel and Carrier | |
| White Powder Coated Galvanised Steel Turbine Wheels | |
| White Alloy Wheels | |
| Hella LED Lights, 3 Year Warranty | |
